Compression, Compact
xxx

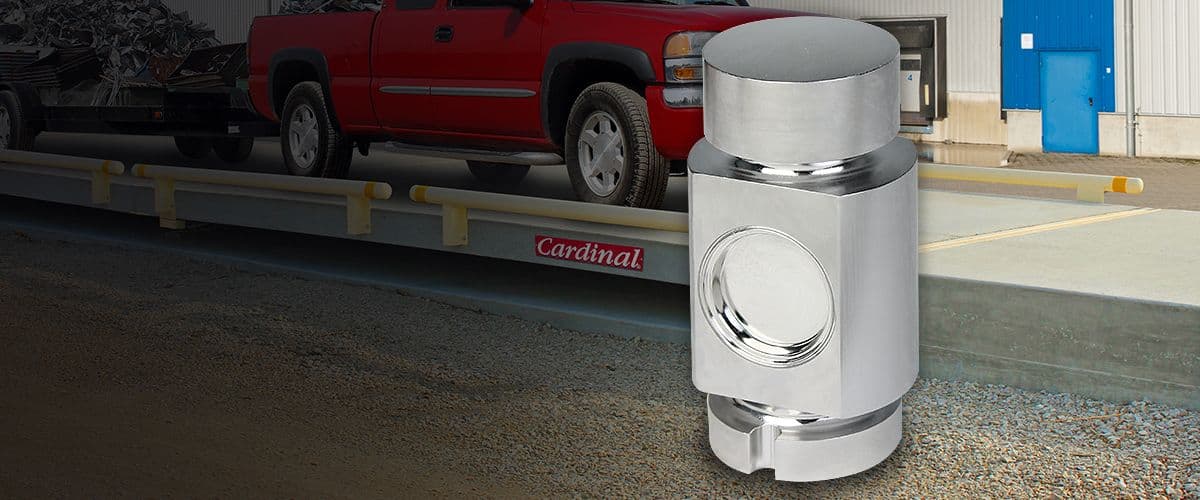

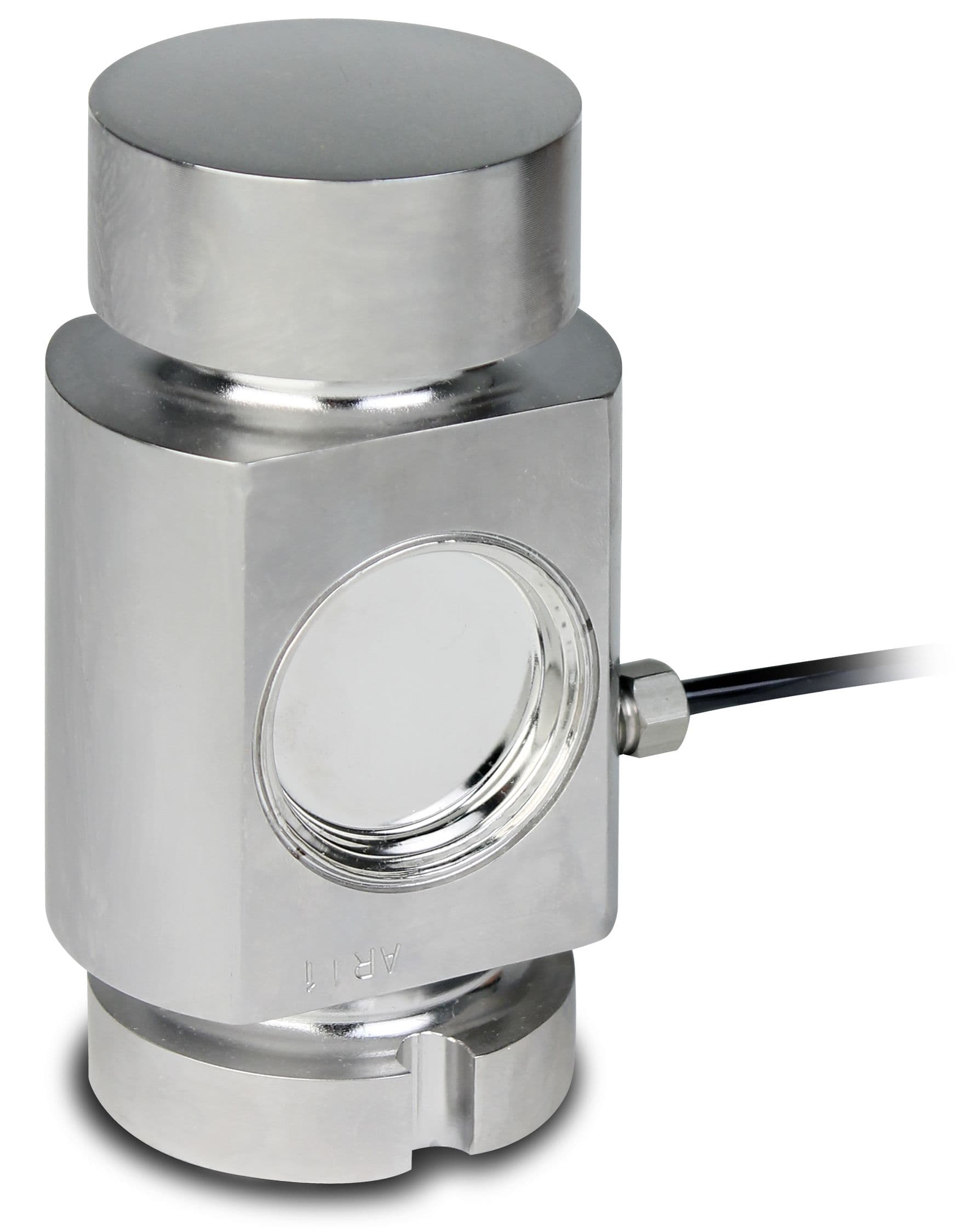

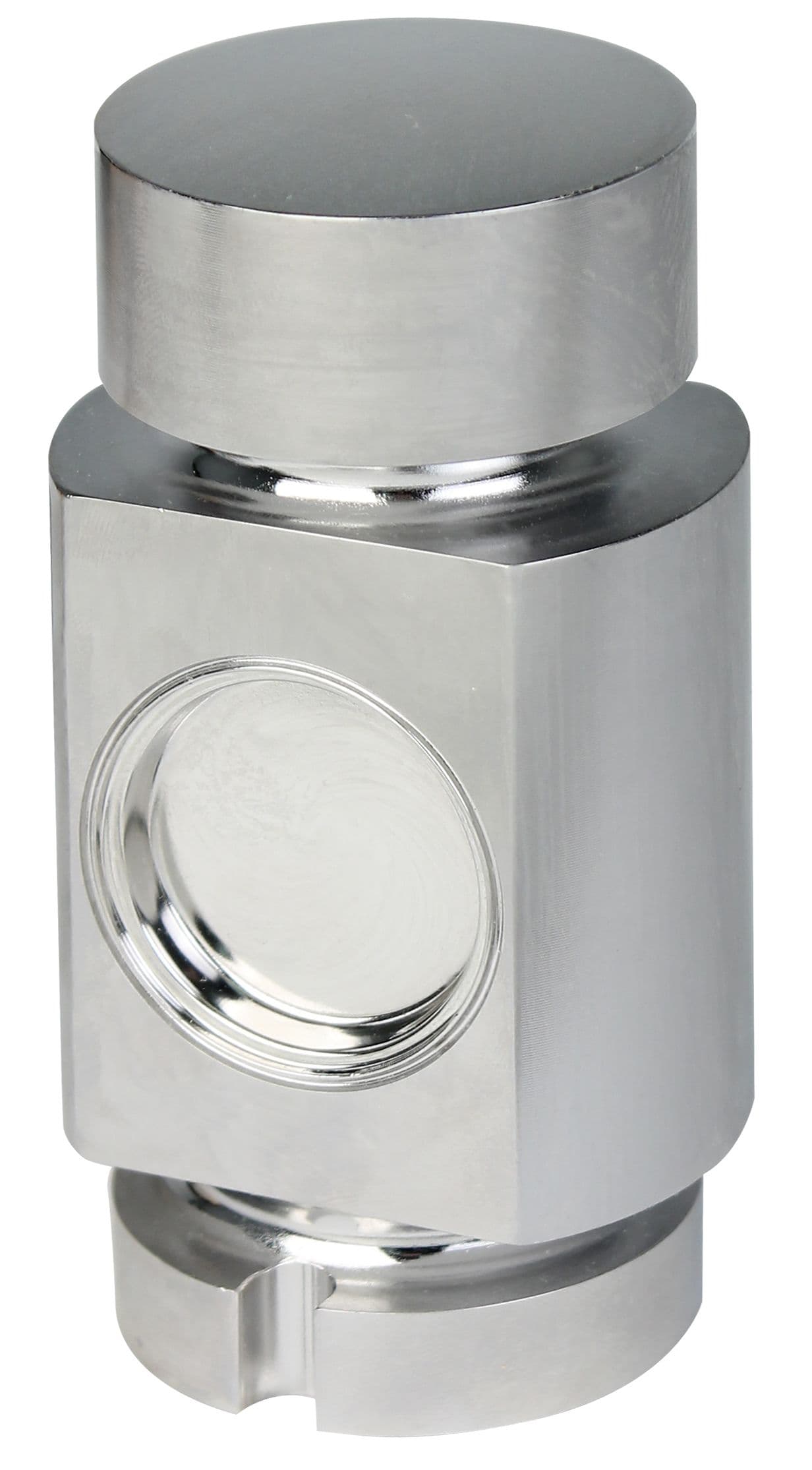

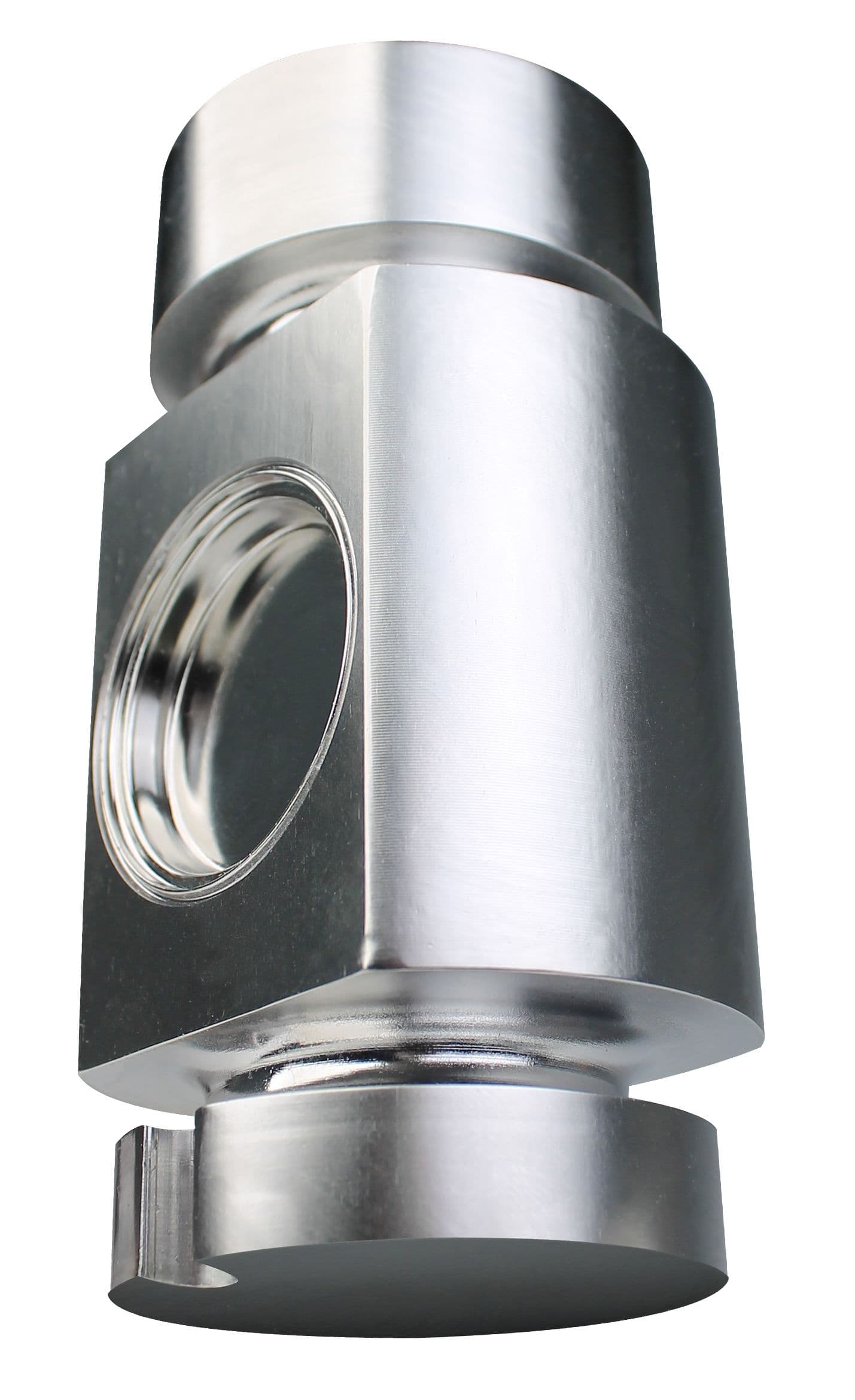

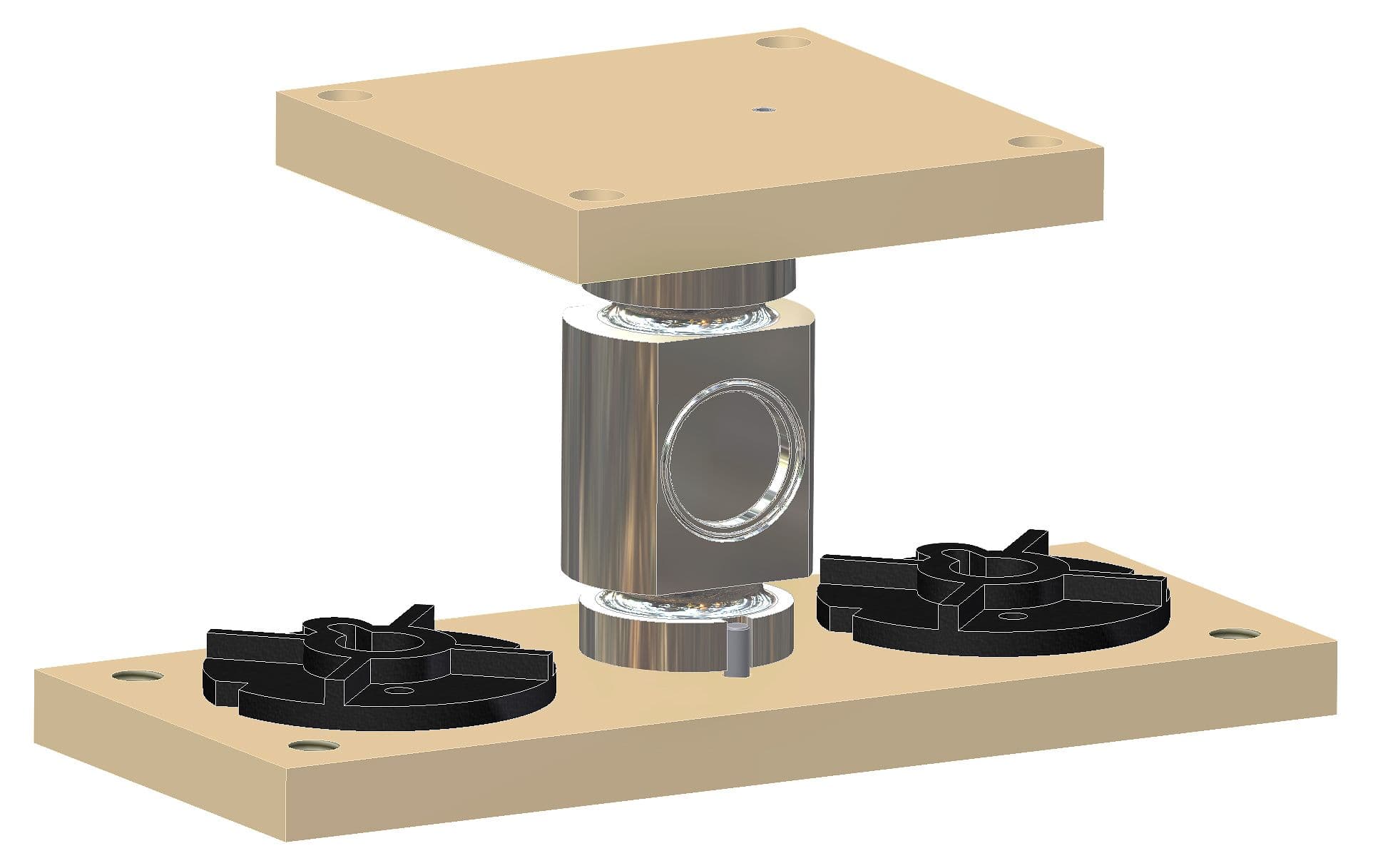

Cardinal Scale’s compact CBC series compression load cells are ideal for multiple load cell weighing applications such as truck scales and heavy-duty tank weighing systems. They feature anti-rotation pivot inserts and come in 50,000-lb/22,500-kg and 75,000-lb/34,000-kg capacities. These load cells are fabricated from stainless steel to provide the ultimate in protection when caustic, corrosive or wet environments are encountered. The CBC series load cells are environmentally-sealed IP68 with a welded stainless steel cup for absolute water protection in rugged environments. Each load cell is furnished with a 75-ft/23-m integral multi-conductor cable secured by a strain relief seal. The top and bottom hardened mating surfaces with the CBC load cell must have a minimum hardness of 40 Rockwell C. NTEP legal for commercial trade.
Cardinal Scale’s compact CBC series compression load cells are ideal for multiple load cell weighing applications such as truck scales and heavy-duty tank weighing systems. They feature anti-rotation pivot inserts and come in 50,000-lb/22,500-kg and 75,000-lb/34,000-kg capacities. These load cells are fabricated from stainless steel to provide the ultimate in protection when caustic, corrosive or wet environments are encountered. The CBC series load cells are environmentally-sealed IP68 with a welded stainless steel cup for absolute water protection in rugged environments. Each load cell is furnished with a 75-ft/23-m integral multi-conductor cable secured by a strain relief seal. The top and bottom hardened mating surfaces with the CBC load cell must have a minimum hardness of 40 Rockwell C. NTEP legal for commercial trade.
