RSCA Pit Type
Electronic or Hydraulic Truck/Track Scale

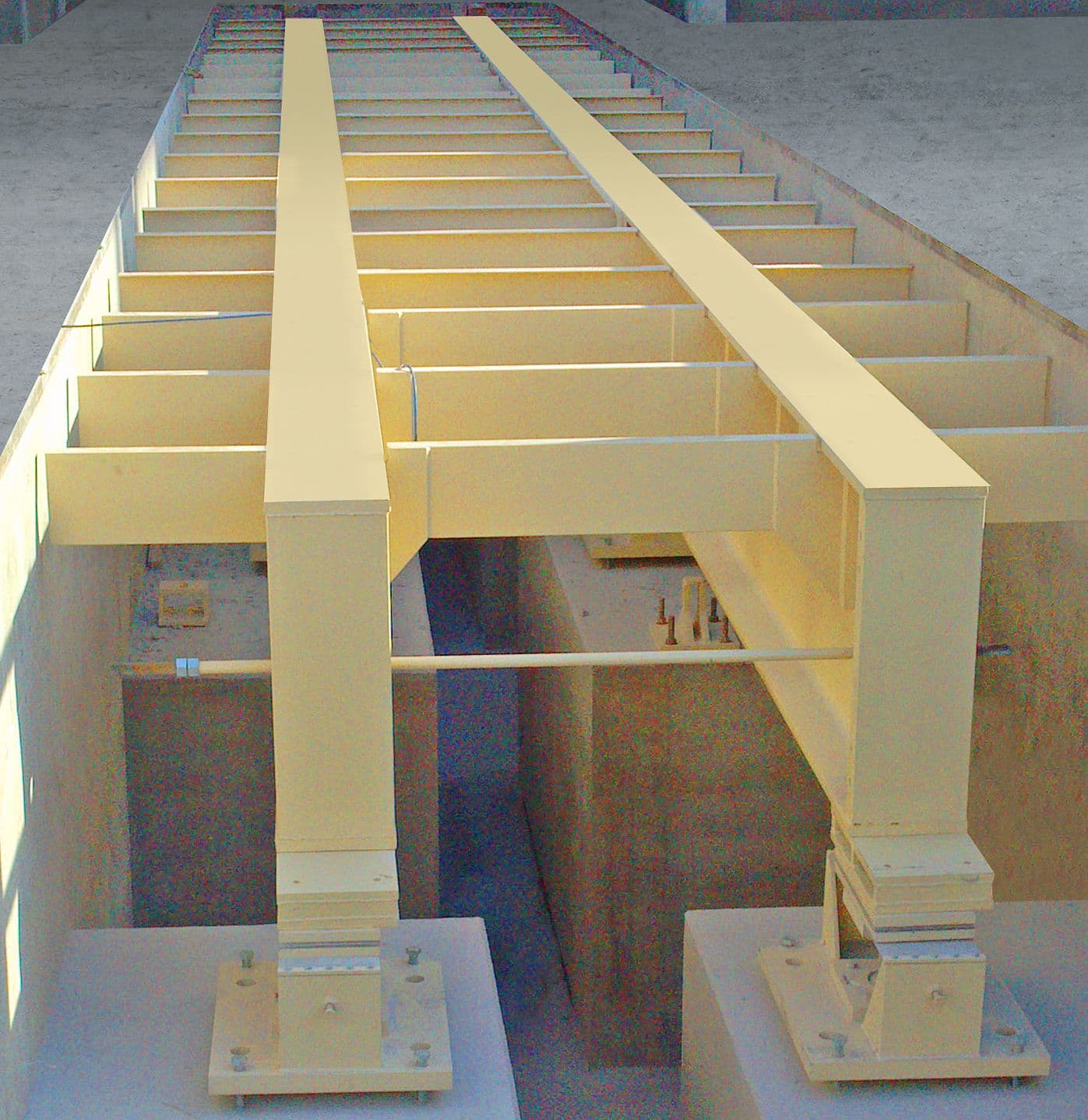

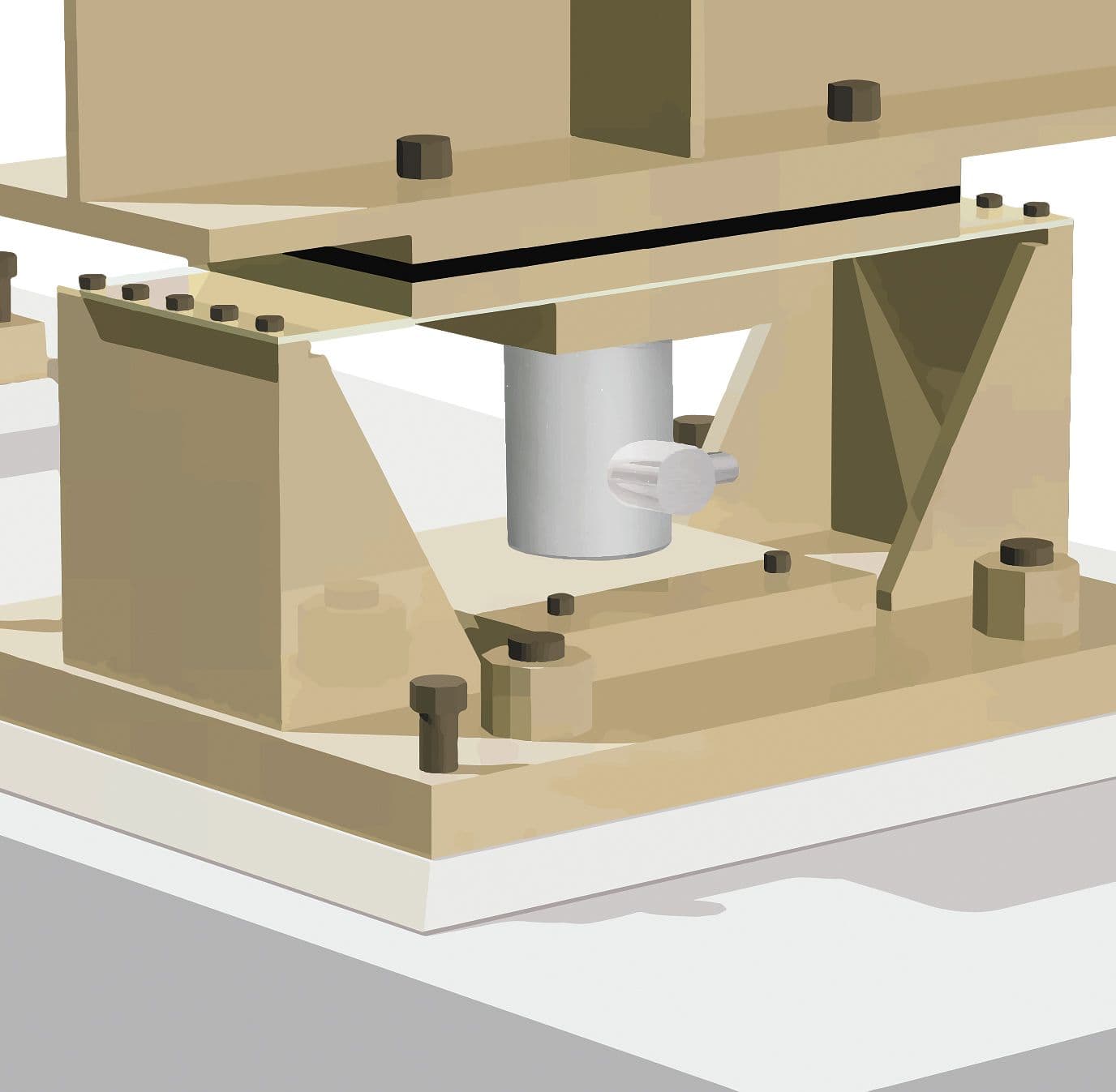

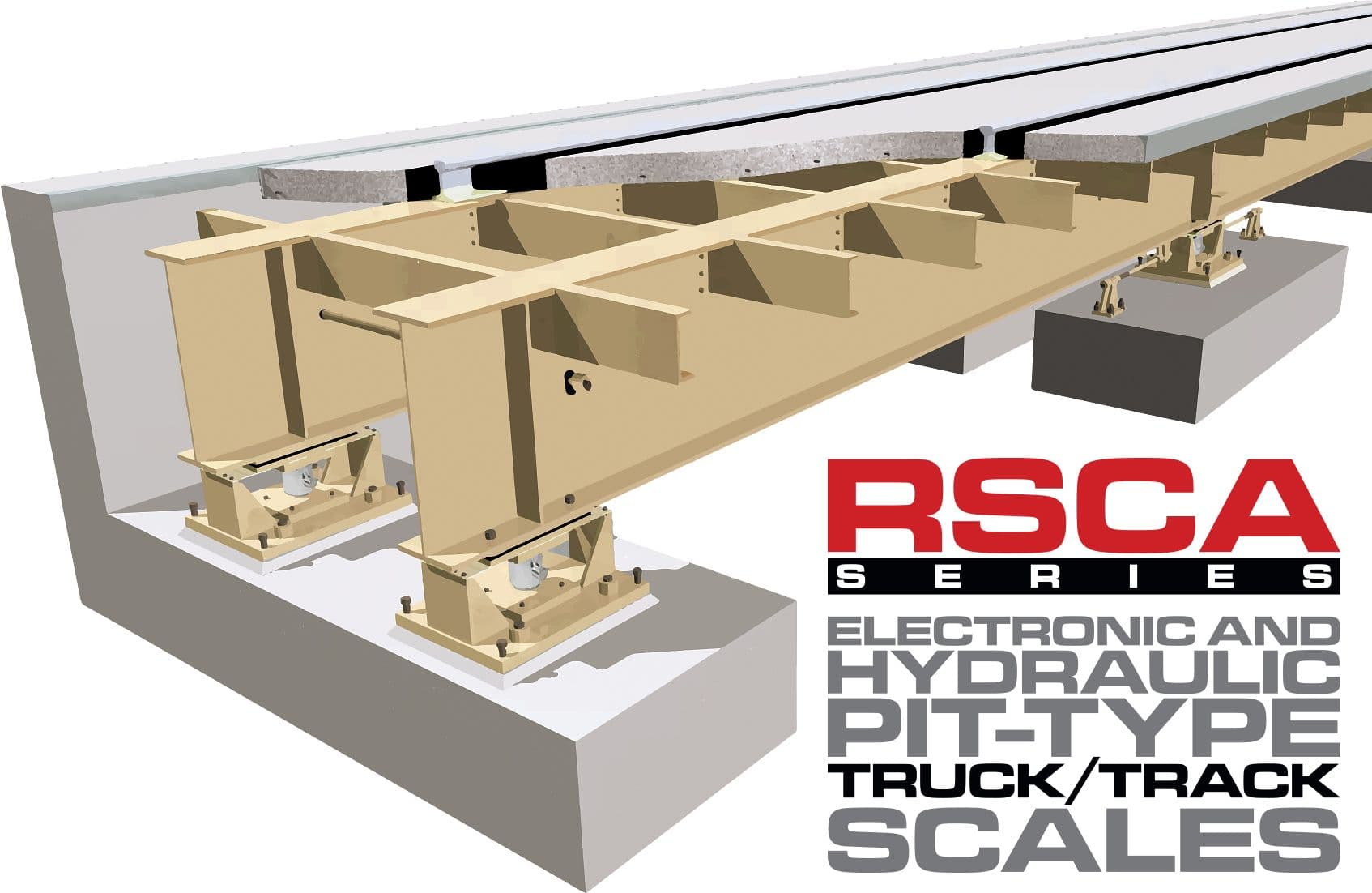

Cardinal Scale’s RSCA series truck and track scales feature a rugged, accurate, and heavy-duty weighbridge system for static weighing operations. The RSCA is a pit-type rail/truck combo scale that is perfect for weighing a variety of rail car sizes and full semi-tractor trailers. The massively-constructed, NTEP legal-for-trade steel weighbridge of Cardinal’s RSCA scale is stabilized laterally with checkrods and other specially designed restraints. Weighrails are sealed into the platform. Choose from electronic or Guardian hydraulic load cells with 270 ton (245 metric ton) gross capacity and 180 ton (163 metric ton) sectional capacity. Special design techniques and manufacturing procedures prevent excessive dirt, moisture, and foreign material from entering the pit, providing this rugged scale accuracy and exceptionally long life. Standard platform lengths available from 60 ft to 100 ft long.
